Day 2 keynote and OpenPOWER blows the doors off: royalty-free, open soft-core (RISC-V sweating gallons)


Holy monkeys of Mars. What a morning at the OpenPOWER Summit Keynote (Day 2)! I swear I'm not paid to write this stuff except for the trivial pittance from ads that goes to maintain the domain name (I'm writing this on my lunch break!). I'm just an old-timer Power ISA bigot who's finally seeing the faith pay off. And boy howdy did it.

Let's hit the big news right now. A reasonable criticism I hear of the OpenPOWER movement is that the ISA isn't, or at least wasn't (oops, spoiler), the open part. This is something that RISC-V in particular could claim superiority on. Somebody at IBM was listening, because today Ken King, general manager of OpenPOWER at IBM, announced "we are licensing [the ISA] to the OpenPOWER Foundation so that anyone can implement on top of it royalty-free with patent rights" (emphasis mine). That's a quote right off the livestream. ISA changes will be "done through the community" with "an open governance model" and a majority vote for ISA expansions and changes.

Let me spell out what this means: you, yes, you, can go out and make your own Power ISA chip and not have to pay IBM. OpenPOWER is now truly open.

The other surprise wasn't OpenCAPI; the announcement that it and the Open Memory Interface are moving into the OpenCAPI Consortium is welcome, but expected. What was the other big news is that the OpenPOWER Foundation is moving into the Linux Foundation. There were already close ties between them before but now the OpenPOWER Foundation will be a component of it, albeit still with its own board, governance structure and decision making.

This announcement was definitely not all talk, because they also introduced Microwatt: a Power ISA soft core. Yes! You can drop it in your design as soon as they upload it!

Anton Blanchard from IBM OzLabs in Canberra announced this one, which was actually demonstrated at the show. Now, this is a very basic core: it's single issue in-order (so your old clamshell blueberry iBook will thrash this), and it doesn't even have hardware divide or cache support yet, though this is planned. In fact, the gcc they used was even hacked to not issue divide instructions. But the darn thing actually works. Here's the super-polished block diagram:

MicroPython is provided, so you can drop this into your design and then talk to it. Here it is in the simulator (which took a couple seconds to compute the answer):

On real hardware it is definitely quicker. Here's the core running on an old Xilinx Artix-7 he found doing nothing in the office computing the Fibonacci sequence:

Xilinx was on stage as a sort of sponsor thing, naturally, so they also gave Anton an Alveo to try this on. They crammed forty cores onto it, and then made it say "Hello World" over and over, because that's exactly what I would do with an expensive programmable piece of hardware. (This is where the name "Microwatt" is kind of crummy, because saying "40 microwatts on an Alveo" sounds like a power consumption benchmark.)

The repo as of this writing is not yet live on Github, but should be within the next day or so.

I'm giving Anton a hard time here because his segment actually was the part of today's keynote that impressed me most. Microwatt is real and tangible and you can work on it, and it can scale from hobbyist to enterprise. This is what really put the "open" into OpenPOWER and I was so delighted to see it run.

I will say I see perhaps a little worry from IBM that RISC-V is going to steal the initiative and momentum, and this move (and the open soft core) is their attempt to recapture the vanguard. RISC-V people should actually be happy about this move: at minimum it means they're being taken seriously at the corporate level, it gets more people thinking about open architectures, and the more truly open architectures out there, the more viable and expected the concept becomes. OpenPOWER is the biggest fish in this sea and (with my bias showing) the most powerful, the most ready for migration and the most well-rounded of all of them, but with more water in the pool everyone can swim farther.

After all of that the rest of it was comparatively pedestrian. Red Hat was also there; Michael Cunningham gave a speech which was largely corporate happy talk, but I think he meant it, and I'm hopeful the big blue and little red merger will generate something of the same rich burgundy shade of my SGI Indigo2. Facebook was there too but their presentation was cloyingly light on tech and heavy on smarm, and I think Facebook is ruining the Internet and the psyche of all who touch it, so that's all I'm going to say about that.

The panel at the end was asked to react to the news, which was a little silly, because what else were they going to say? On stage were Derek Chiou, partner system architect at Microsoft and associate professor at UT-Austin; Alan Clark, CTO for SUSE; Tim Pearson, CTO for Raptor; Bapi Vinnakota, engineer from Netronome; Steve Hebert, CEO for Nimbix and Peter Rutten, research director within IDC's Enterprise Infrastructure Practice. They all thought it was cool, because it is cool.

Microsoft was an interesting choice, but Dr. Chiou was complimentary, saying, "we're very supportive of the open source ... Microsoft sees that's where things are going." He also observed, to my interest, that "the interconnect is more important than the ISA." I'm not sure how true that is but I do agree with him that the ability to openly connect is certainly something that's been overlooked, and we need open tooling to make all of this possible. However, the best panel quote was this one, name censored to protect the innocent: "I'm a pretty incompetent developer, so ... [pauses] Python." Yep. Python definitely is the language of incompetent developers. :D (Hey, I got honourable mention in the obfuscated Perl contest one year! I couldn't resist.)

Tim put it best, though, when he said that "it's going to allow people to trust their computers again." That's why we're using OpenPOWER hardware in the first place. Mendy Furmanek, president of the OpenPOWER Foundation, closed up and said that "Christmas has to end sometime," but we got a whopper of a present today. The party's about to get started and IBM deserves all the credit for a move that really is courageous.

Read yesterday's Day 1 coverage for more if you haven't already.

Keynote notes from Day 1 of OpenPOWER Summit NA (and introducing the Condor)


UPDATE: An even bigger announcement from Day 2!

I'm still catching up on everything since I have to do this after $DAYJOB, but the big news from the OpenPOWER Summit keynote among all the great vendors and technology announcements (Day 1) was the last of the POWER9s and the next Raptor system.

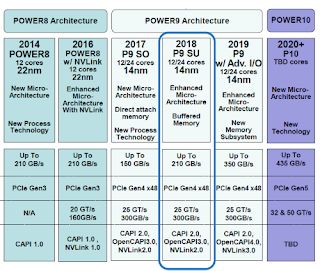

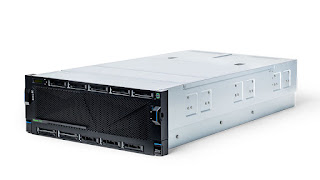

Although there were many great pieces in the keynote, the IBM Power roadmap is of course of significant interest. The big one was a subtle but significant change in announced specs. Although one more generation of POWER9 is planned before POWER10, compare this slide to what we posted last year:

For the (now) 2020 "Advanced I/O" POWER9, there's still the same number of PCIe lanes, same signaling speed, same CAPI, NVLink and OpenCAPI 4.0 options. But memory bandwidth went from 350 GB/s to 650.

This whopping difference appears to be from OpenCAPI agnostic buffered memory, implemented as OMI, the Open Memory Interface. For POWER8 IBM introduced Centaur, a way of getting around the inherent limitations of running DDRRAM on a large number of channels by creating an intermediate controller. Instead of driving the RAM directly (as in POWER9 scale-out CPUs like the Sforzas in our Talos II systems), Centaur accepts high-level read and write commands from the CPU(s) and abstracts away the details of getting it to and from the actual DIMMs, including reordering requests and caching them as needed. Each differential memory interface channel on the CPU has its own Centaur which in the current implementation offers four DDR4 memory channels, giving a single CPU up to eight buffered channels to memory and effectively 32 channels to the underlying DDR4. Centaur is also supported on POWER9 scale-up so that people's investment in RAM won't go to waste, but a complex chip like that adds various board engineering constraints, which is why POWER9 scale-out with direct memory attachment was also offered as an option for systems that didn't quite need all Centaur had to offer. (Scale-out's emphasis on PCIe lanes also makes a difference in that market segment, too.)

The idea with OMI is striking a balance between buffering memory and directly attaching it, and AIO POWER9 will be the first CPU to support it. By being "agnostic" it has no ties to any particular underlying memory technology, meaning it can grow as new technologies emerge. OMI runs at 25Gbps per lane and with a latency of just 5ns instead of the 10ns of present-day Centaur. Best of all, it will be non-proprietary, meaning any vendor that wants to make an OMI-compliant memory system can do so and hopefully increase the economies of scale. In fact, one of them did:

Microchip subsidiary Microsemi's OMI-compliant "differential DIMMs" (DDIMMs) should be simultaneously available with the AIO POWER9 next year, using their custom on-board DDR4 OMI interface with an eight-lane channel for a full 25GB/s. I have to say I'm a little cold over yet another RAM standard (looking at the weirdo RAM in my SGI Fuel), but as long as the prices are competitive and the performance is stonking, I could be convinced. Alternatively, the OMI controller could simply be on the board and fan out to regular DIMM slots more or less as things work now, though this robs the standard of some of the future proofing I think it's intended to have.

Back to IBM. The 14nm "Bandwidth Beast," as they're nicknaming the AIO POWER9, will have 16 x8 OMI channels for 25 GT/s and -- there it is -- up to 650 GB/s peak bandwidth. Microchip's buffer won't get that high, though, which is a puzzling thing to pair it with; it seems to top out at "only" 410 GB/s (I know, cry me a river). Onboard will be up to 24 SMT-4 cores, up to 120MB eDRAM L3 cache, 48 PCIe 4.0 lanes (yes, same as our scale-out Sforzas) at 16 GT/s, and up to 48 lanes each for NVLink and OpenCAPI 4.0 attaches. Clearly IBM intends this to replace both scale-up and scale-out simultaneously, so I guess AIO also stands for "all in one":

Oh yeah ... Raptor was there too. Here's Hugh Blemings introducing Tim Pearson:

I'll gently needle Raptor here and say they need a PowerPoint or LibreOffice deity to sex up their slides a bit. But who needs eye candy when you can announce this?

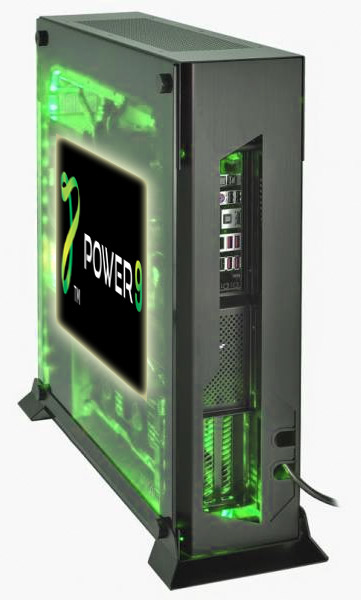

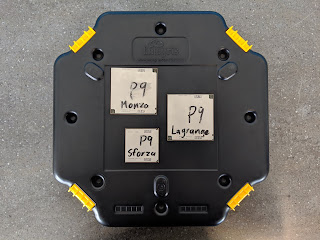

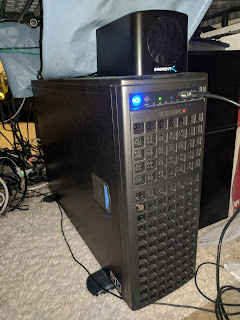

Yes, friends, you too can have a big, intimidating vulture of a computer -- in a form factor smaller than the T2. The Condor is that mythical LaGrange system we heard about last fall. This is a single-socket system to get it to fit in an ATX form factor as opposed to the hulking EATX T2 I'm typing this on, so it won't take advantage of the extra X-Bus capacity, although a multi-socket LaGrange would probably have been too pricey and power-hungry (and too big) for our rarified workstation market anyway. It will have 4 PCIe slots and 8 DDR4 slots (42 PCIe lanes as opposed to Sforza's 48, but double Sforza's four DDR4 channels), which for my money would slot it between the T2 and T2 Lite, and Raptor seems to be encouraging this comparison with the board size. The extra PCIe slot probably would entice some buyers who don't find the Blackbird or T2 Lite expandable enough but don't want to go the full hog, as well as those looking for a less expensive platform to experiment with OpenCAPI (it offers one slot).

We would expect nothing less from Raptor than it to be a fully open, blob-free platform, and it will be available Q1 2020. Price wasn't announced, but my guess is it will be commensurate with that same product placement.

One final miscellaneous note; I don't recall anything said about this, but Raptor seems to have it on its wiki now, so I'll assume the "embargo" is lifted. While you're waiting for the AIO, in the meantime the Sforza DD2.3 stepping should be emerging soon, which will fix various errata including the DAWR for hardware watchpoints. Finally! This should drop right into your existing Talos and Blackbird systems.

More tomorrow, including the BIG ANNOUNCEMENT!
(About all I know is it isn't a laptop.)
